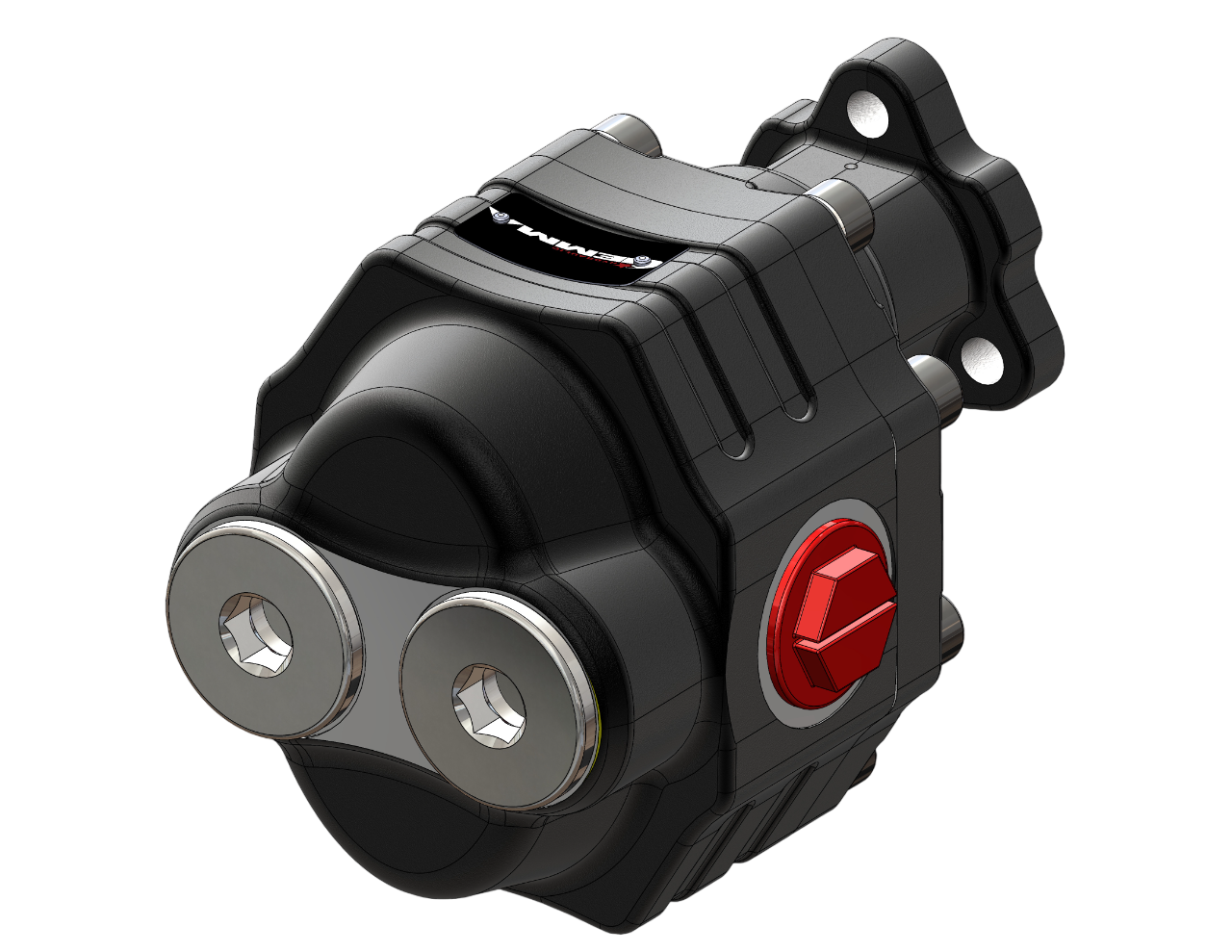

35 Serie Zahnradpumpen UNI Umkehrbare
35 Serie Zahnradpumpen UNI Umkehrbare

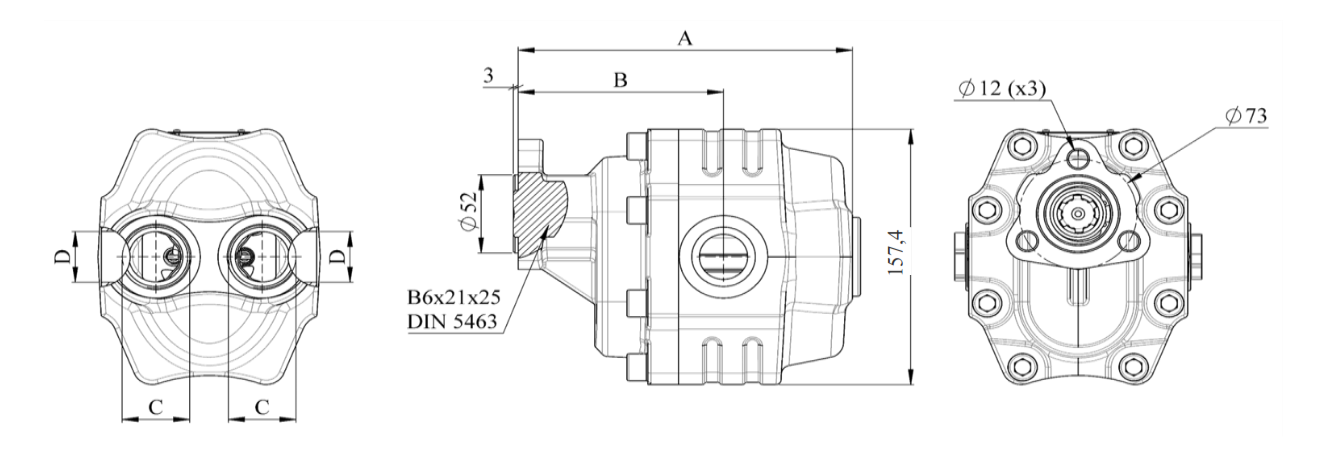

| Product Code | Product Description | Displecement ( cm³/rev ) |
Working Pressure ( bar ) |
Max Peak Pressure ( bar ) |
Max Continuous Speed ( RPM ) |
A | B | Oil Inlet ( C ) |
Oil Outled ( D ) |
Weight ( kg ) |
||||||||||||||||||
| 33506341 | 63 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 63 | 290 | 325 | 1800 | 196,7 | 119,7 | G 1 1/4" | G 1" | 15,00 | ||||||||||||||||||
| 33507541 | 75 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 75 | 280 | 315 | 1800 | 201,5 | 124,5 | G 1 1/4" | G 1" | 15,50 | ||||||||||||||||||
| 33508241 | 82 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 82 | 260 | 290 | 1800 | 204,0 | 127,0 | G 1 1/4" | G 1" | 16,00 | ||||||||||||||||||
| 33509041 | 90 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 90 | 260 | 290 | 1800 | 207,5 | 127,5 | G 1 1/4" | G 1 1/4" | 16,50 | ||||||||||||||||||
| 33510041 | 100 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 100 | 250 | 280 | 1800 | 210,5 | 130,5 | G 1 1/4" | G 1 1/4" | 17,00 | ||||||||||||||||||
| 33511041 | 110 cc UNI 3 Bolt Bi-Rotational Gear Pump 4 Port | 110 | 240 | 270 | 1500 | 213,5 | 133,5 | G 1 1/4" | G 1 1/4" | 17,50 | ||||||||||||||||||
