MPS - NG 06 Parallel Mit Überdruckventil Und Bypass-Station
MPS - NG 06 Parallel Mit Überdruckventil Und Bypass-Station

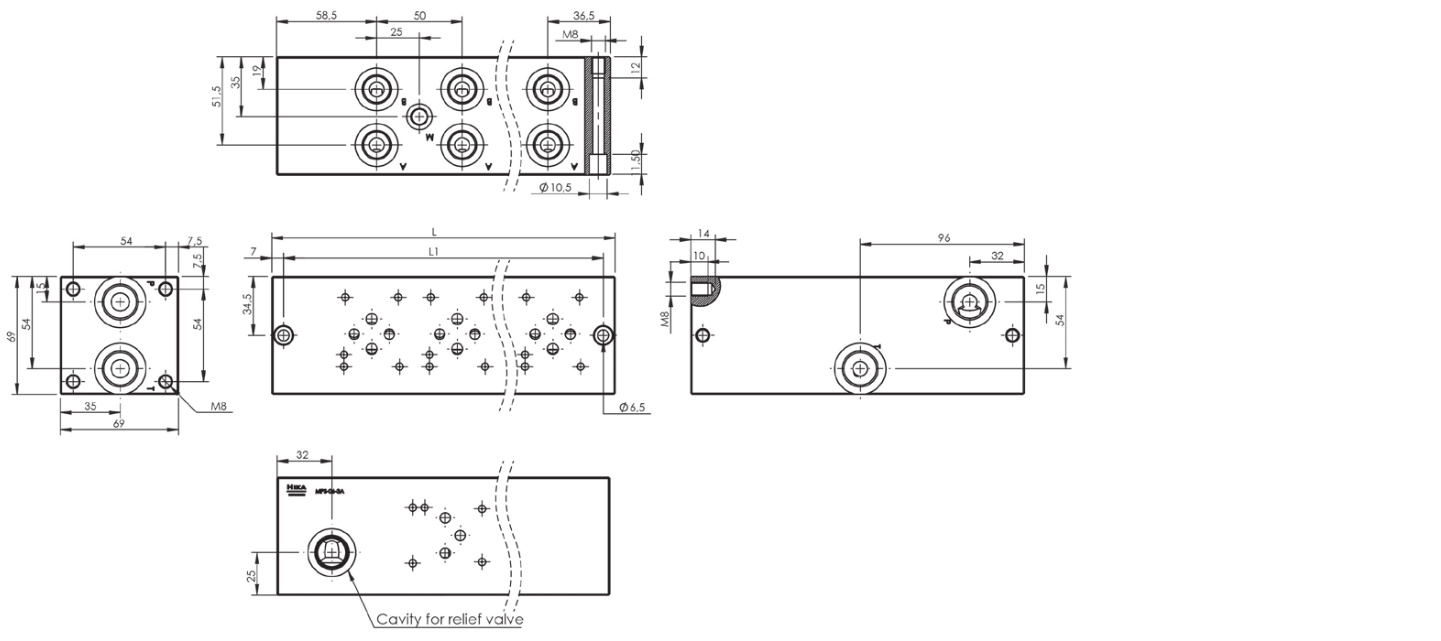

| Code | Qmax | Pmax. | ØP-T | ØA-B | ØGA | L | L1 | Weight |
| (l/min) | (Bar) | BSPP | BSPP | BSPP | mm | mm | Kg | |
| MPS-06-2A | 40 | 210 | 1/2" | 3/8" | 1/8" | 145 | 131 | 1,75 |
| MPS-06-3A | 40 | 210 | 1/2" | 3/8" | 1/8" | 195 | 181 | 2,35 |
| MPS-06-4A | 40 | 210 | 1/2" | 3/8" | 1/8" | 245 | 231 | 2,95 |
| MPS-06-5A | 40 | 210 | 1/2" | 3/8" | 1/8" | 295 | 281 | 3,55 |
| MPS-06-6A | 40 | 210 | 1/2" | 3/8" | 1/8" | 345 | 331 | 4,15 |
| MPS-06-7A | 40 | 210 | 1/2" | 3/8" | 1/8" | 395 | 381 | 4,75 |
| MPS-06-8A | 40 | 210 | 1/2" | 3/8" | 1/8" | 445 | 431 | 5,35 |
