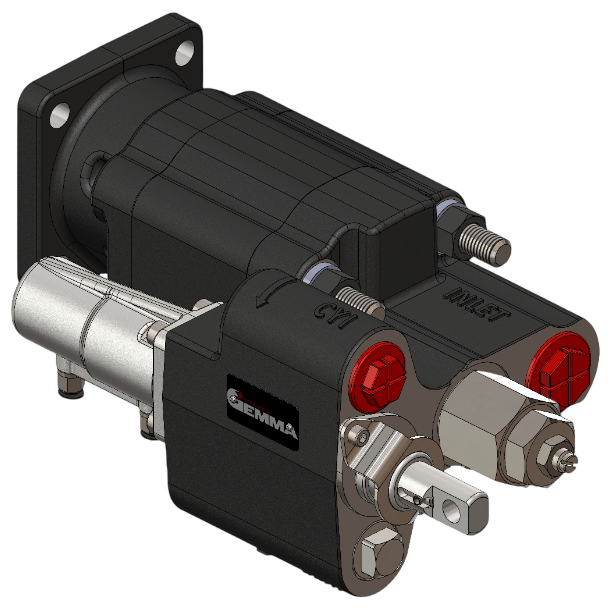

C101 Dump Pump P.C. Series

C101 Dump Pump P.C. Series 31010151-LP

Product Code

Displacement

Max. pressure

Max.continuous speed

Max.speed at intermit. pressure

Oil temperature range

Oil inlet diameter - C

Oil Outlet diameter - D

Rotation

Weight

31010151-LP

105 cm³/r

173 bar / 2500 psi

1800 rpm

2400 rpm

-20 & 80 °C

1 1/4" NPT

1" NPT

Left (ccw)

31 kg
