GCE Çek Valf
GCE Çek Valf

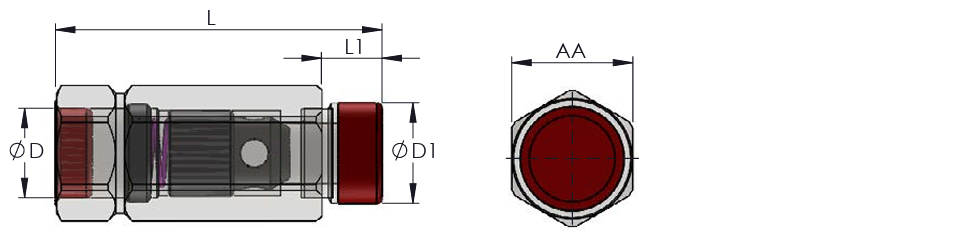

| Code | Q max | P max | ØD | ØD1 | AA | L | L1 | Weight |
| l/min | Bar | BSPP | BSPP | kg | ||||
| GCE-06 | 15 | 400 | 1/4" | 1/4" | 19 | 55 | 11 | 0,1 |
| GCE-08 | 30 | 400 | 3/8" | 3/8" | 24 | 65 | 12 | 0,18 |
| GCE-10 | 50 | 400 | 1/2" | 1/2" | 27 | 75 | 14 | 0,23 |
| GCE-15 | 90 | 400 | 3/4" | 3/4" | 36 | 86,5 | 16 | 0,45 |
| GCE-20 | 150 | 350 | 1" | 1" | 41 | 110 | 19 | 0,73 |
| GCE-25 | 200 | 350 | 11/4" | 11/4" | 55 | 123 | 22 | 1,5 |
| GCE-30 | 300 | 300 | 11/2" | 11/2" | 60 | 138 | 22 | 2 |
