SVF - Ön Dolum Valfi
SVF - Ön Dolum Valfi

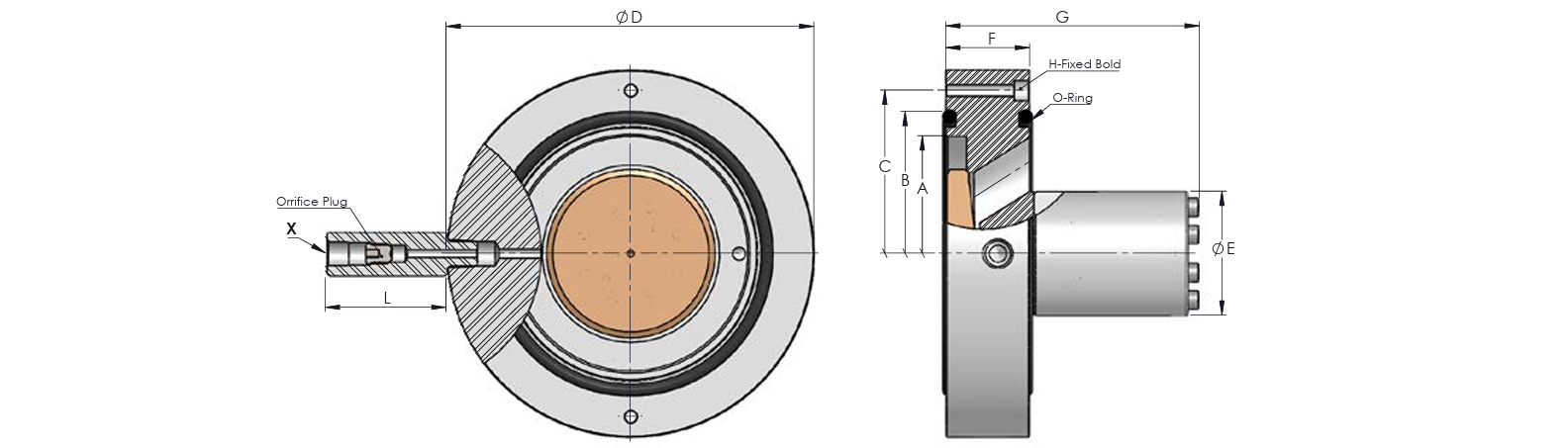

| Code | ØA | ØB | ØC | ØD | ØE | F | G | L | X | H-Fixed Bolts |
O-Ring |
| SVF-25 | 38 | 53 | - | 80 | 28 | 27 | 65 | 62 | G 1/4" | - | 1517-3 |
| SVF-32 | 48 | 63 | - | 82 | 33 | 28 | 70 | 62 | G 1/4" | - | 1517-6 |
| SVF-40 | 56.5 | 73 | 91 | 108 | 39 | 28 | 71.5 | 62 | G 1/4" | M4X30 | 1517-9 |
| SVF-50 | 72 | 90 | 112 | 128 | 42 | 29 | 91 | 62 | G 1/4" | M4X30 | 1517-14 |
| SVF-63 | 87 | 105 | 125 | 143 | 50 | 33.5 | 106 | 62 | G 1/4" | M5X35 | P95 |
| SVF-80 | 108 | 130.5 | 150 | 169 | 57 | 38.5 | 115 | 62 | G 1/4" | M5X40 | P120 |
| SVF-100 | 130 | 155 | 185 | 210 | 70 | 44 | 150 | 62 | G 1/4" | M6X45 | P145 |
| SVF-125 | 170 | 200 | 226 | 248 | 89 | 51 | 195 | 62 | G 1/4" | M6X60 | P185 |
| SVF-160 | 218 | 250 | 284 | 310 | 120 | 70 | 230 | 70 | G 3/8" | M8X70 | P235 |
| SVF-200 | 272 | 310 | 355 | 390 | 145 | 95 | 300 | 85 | G 1/2" | M10X95 | P295 |
| SVF-250 | 350 | 398 | 445 | 490 | 176 | 110 | 390 | 85 | G 1/2" | M12X115 | P375 |
| Code | Flow | Op. Pressure | Pilot Ratio | Bolts | Pipe Size | Weight |
| Qmax (L/min) | Pmax. (Bar) | Kg | ||||
| SVF-25 | 100 | 400 | 4.3 | M12x4 | 11/2" | 1.2 |
| SVF-32 | 160 | 400 | 3.6 | M16x4 | 2" | 1.3 |
| SVF-40 | 250 | 400 | 3.3 | M20x4 | 21/2" | 2.2 |
| SVF-50 | 400 | 400 | 3.8 | M16x6 | 3" | 2.9 |
| SVF-63 | 630 | 400 | 4.2 | M16x8 | 31/2" | 4.5 |
| SVF-80 | 1000 | 400 | 4.3 | M20x8 | 4" | 6.2 |
| SVF-100 | 1600 | 400 | 4.3 | M25x10 | 5" | 12.3 |
| SVF-125 | 2500 | 400 | 4.3 | M25x16 | 8" | 23 |
| SVF-160 | 4000 | 400 | 4.2 | M30x16 | 10" | 50 |
| SVF-200 | 7000 | 280 | 4.1 | M30x20 | 12" | 85 |
| SVF-250 | 15000 | 280 | 4.4 | M30x24 | 16" | 156 |
| Orifice Plug Options | ||
| Code | Orifice | Plug |
| SVF-25,32,40,50 | 0,7 mm | G 1/8" |
| SVF-63 | 0,8 mm | |
| SVF-80 | 1,0 mm | |
| SVF-100 | 1,2 mm | |
| SVF-125,160 | 1,5 mm | |
| SVF-200 | 1,8 mm | G 1/4" |
| SVF-250 | 2,5 mm | G 3/8" |
